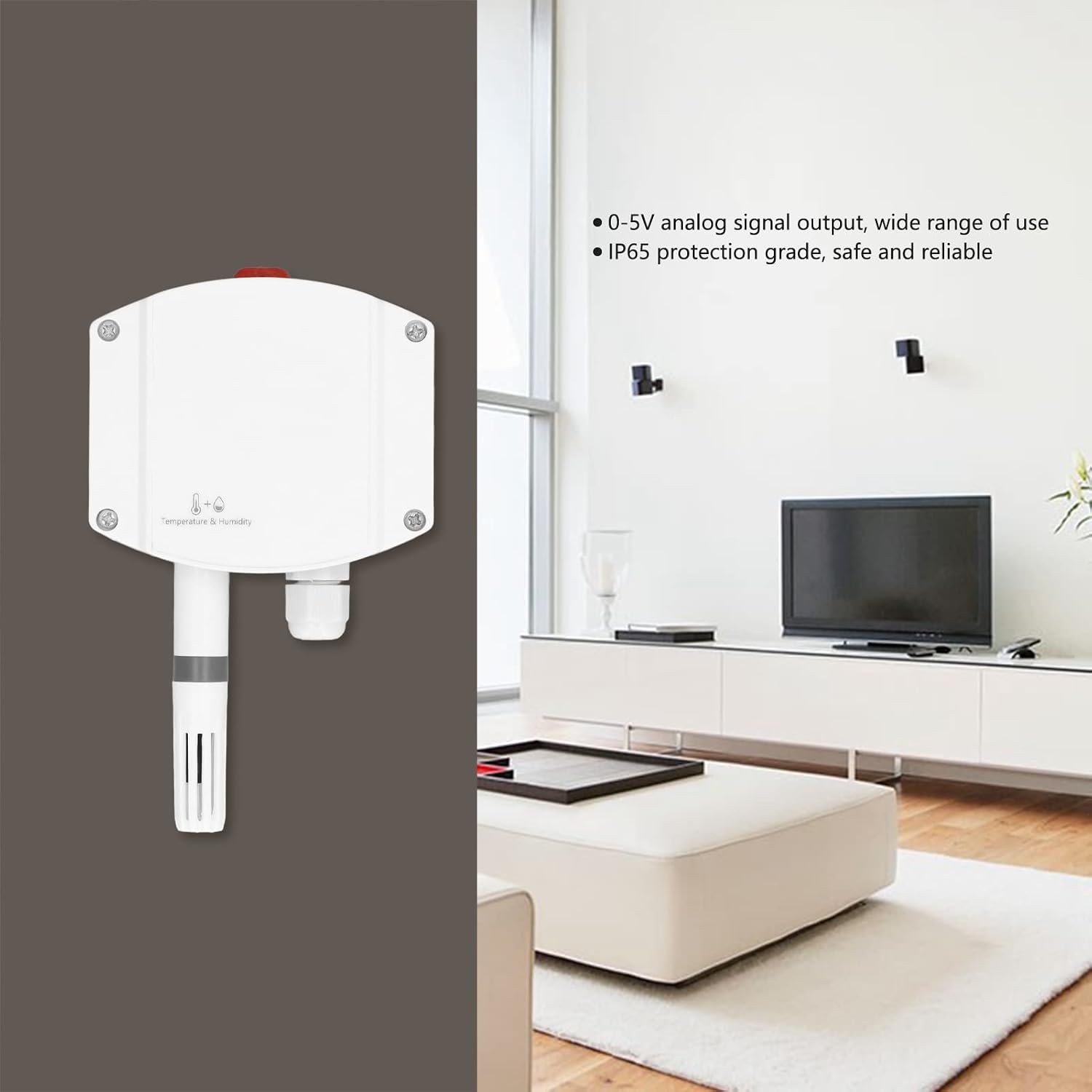

Temperature Humidity Transmitter, 10 to 30V IP65 Protection 0~5V Analog Circuit Resistant to Rain Snow Well Air Permeability Transmitter for Digital Display Meter PLC

Specification：Item Type: Temperature Humidity TransmitterMaterial: ABSProduct Size: Approx. 147 x 88 x 41mm / 5.8 x 3.5 x 1.6inWeight: Approx. 157 g / 5.5 ozProduct Description:The transmitter is an industrial wall mounted high protection grade shell with IP65 protection grade, rain and snow protection and good air permeability. The circuit adopts industrial grade microprocessor chip and imported high accuracy temperature and humidity sensor to ensure excellent reliability, high accuracy and interchangeability of products. Adopt standard industrial interface 0-5V analog signal output, can be connected to on site digital display, PLC, inverter, industrial control host and other equipment, reliable, beautiful appearance, simple to install.Power Supply Wiring: Wide voltage 10-30V DC power inputOutput Interface Wiring: With 2 independent analog outputParameter:DC Power Supply (Default) DC 10~30VMaximum Power Consumption Current Output 1.2WVoltage Output 1.2WA Quasi Accuracy Humidity ±2%RH (60%RH, 25℃)Temperature ±0.4℃ (25℃)B Quasi Accuracy Humidity ±3%RH(60%RH,25℃)Temperature ±0.5℃ (25℃)Temperature Range -40℃~+120℃, default -40℃~+80℃Humidity Range 0%RH-100%RHCircuit Working Temperature -20℃~+60℃Circuit Working Humidity 0%RH~95%RH (non condensing)Probe Working Temperature -40℃~+120℃, default -40℃~+80℃Probe Working Humidity 0%RH-100%RHLong Term Stability Humidity ≤1%RH/yTemperature ≤0.1℃/yResponse Time Humidity ≤8s(1m/s wind speed)Temperature ≤25s(1m/s wind speed)Output Signal Voltage Output 0~5VLoad Capacity Voltage Output Output Resistance ≤250ΩCurrent Output ≤600ΩPackage List:2 x Screws2 x Expansion Tubes1 x Transmitter1 x User ManualNote:The device does not provide line by default, the line color is for

• HIGH ACCURACY: Adopt high accuracy temperature and humidity measurement unit, with small size and long term stability.
• WIDE VOLTAGE: Using a dedicated 0~5V analog circuit, the use range is wide, and it has a wide voltage input range of 10~30V.
• GOOD PROTECTION: The transmitter has IP65 protection, rain and snow, and has good air permeability.
• SIMPLE TO INSTALL: The temperature and humidity sensor has a compact structure and supports wall or rail installation.
• WIDE APPLICATION: Can be connected to on site digital display meter, PLC, inverter and other equipment, reliable.
