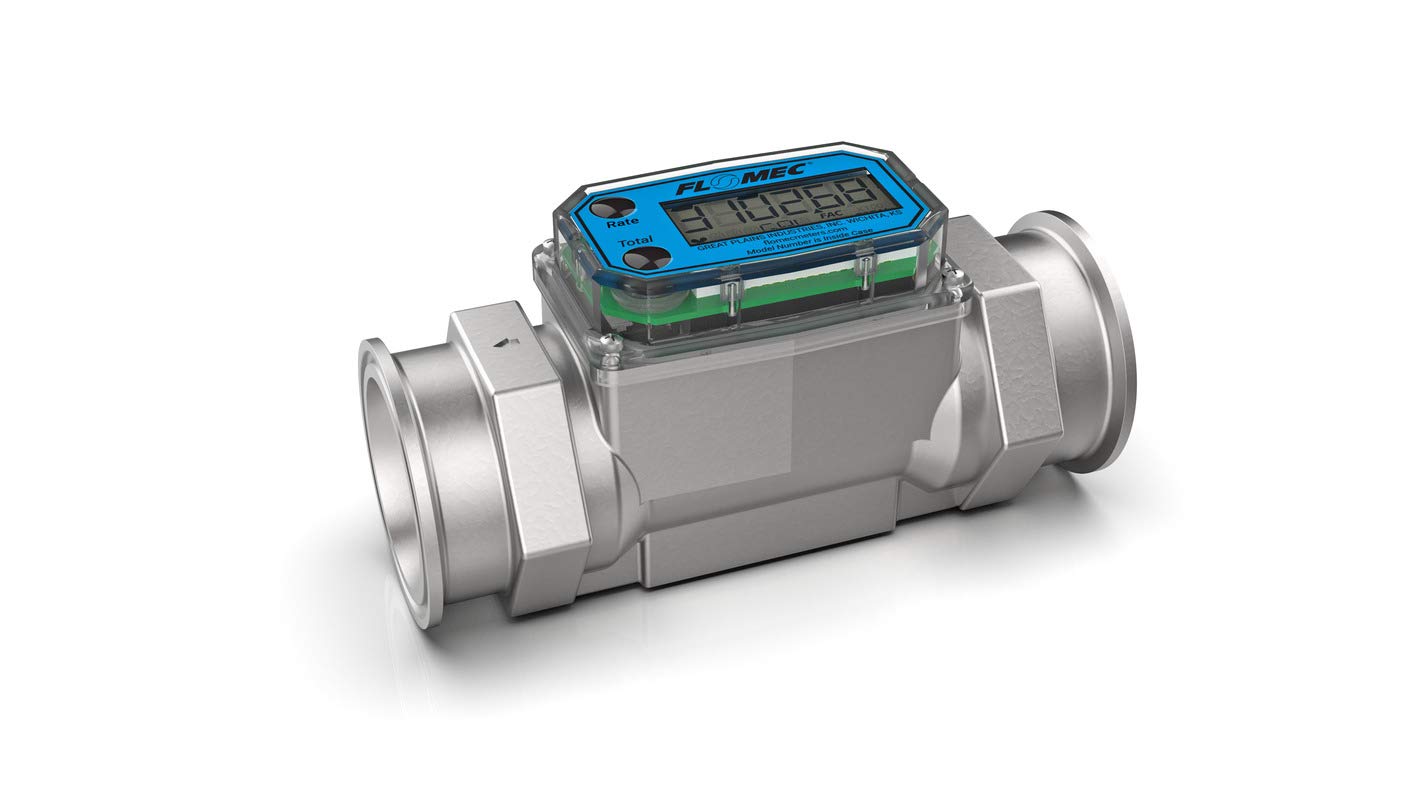

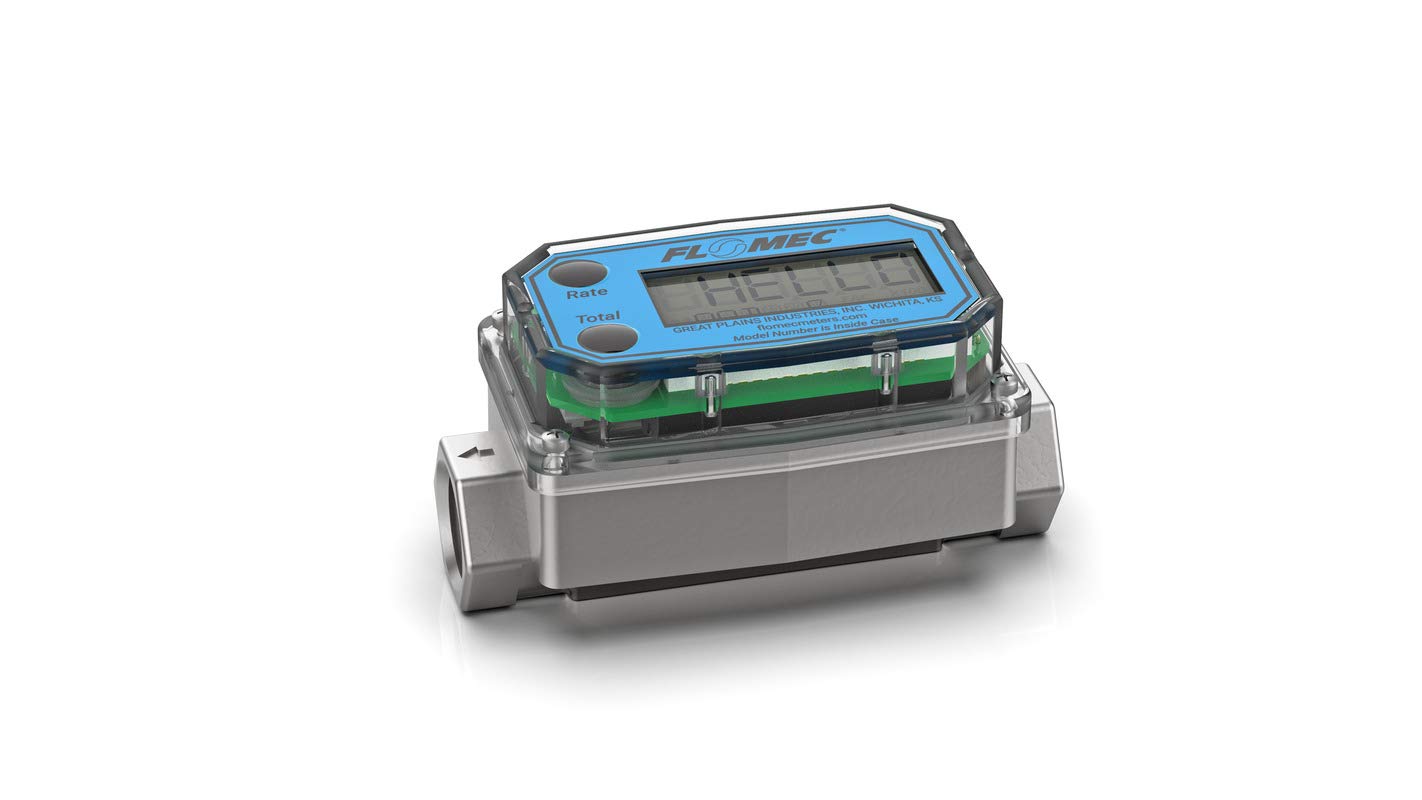

G2 Series Turbine Flow Meter for Petro Chem, Fuel, Water, and Solvents, Stainless Steel Body, 1 Inch Pipe Size, 1-1/2 Inch Tri-Clamp Fitting (G2S10TQ9GMA)

The G2 family of meters is a compact, self-contained group of turbine meters that represent the ideal choice when accuracy and convenience are required for your application. The integral battery operated display provides flow rate, grand total and a re-settable total so you have the information you need at your fingertips. The factory calibration feature creates a true Plug and Play device. Installation is as easy a connecting your pipe and turning on the flow.

• What's in the Box: Turbine flowmeter, Local Digital Display, (2) alkaline AAA batteries, Owners Manuals
• Features highly visible Q9, battery-powered, LCD display; 2-year battery life
• Modular design allows for use with output modules, sensors, and remote display kits; plug and play
• Flow Range is 5 - 50 GPM (19-190 L/min). Accuracy +/- 1%
• Internal parts are simple to replace for easy maintenance
• 11 pre-programmed engineering units plus 1 custom option: gallon, litre, imperial gallon, quart, ounce, acre-foot, millilitre, cubic foot, cubic centimetre, cubic metre, barrel
• Add the 4-20mA Module to your turbine meter display electronics to provide an industry-standard analog signal for connection to a variety of chart recorders, display equipment, and process control equipment. See Optional Output Module details.
• Stainless Steel meter housing; Operating Temperature 0° F to 129° F (-18° C to 54° C)
• Recommended for Fuels, Petroleum-based Chemicals, Solvents and Water
• 1-1/2 inch Tri-Clamp Connection, 1 inch Pipe
