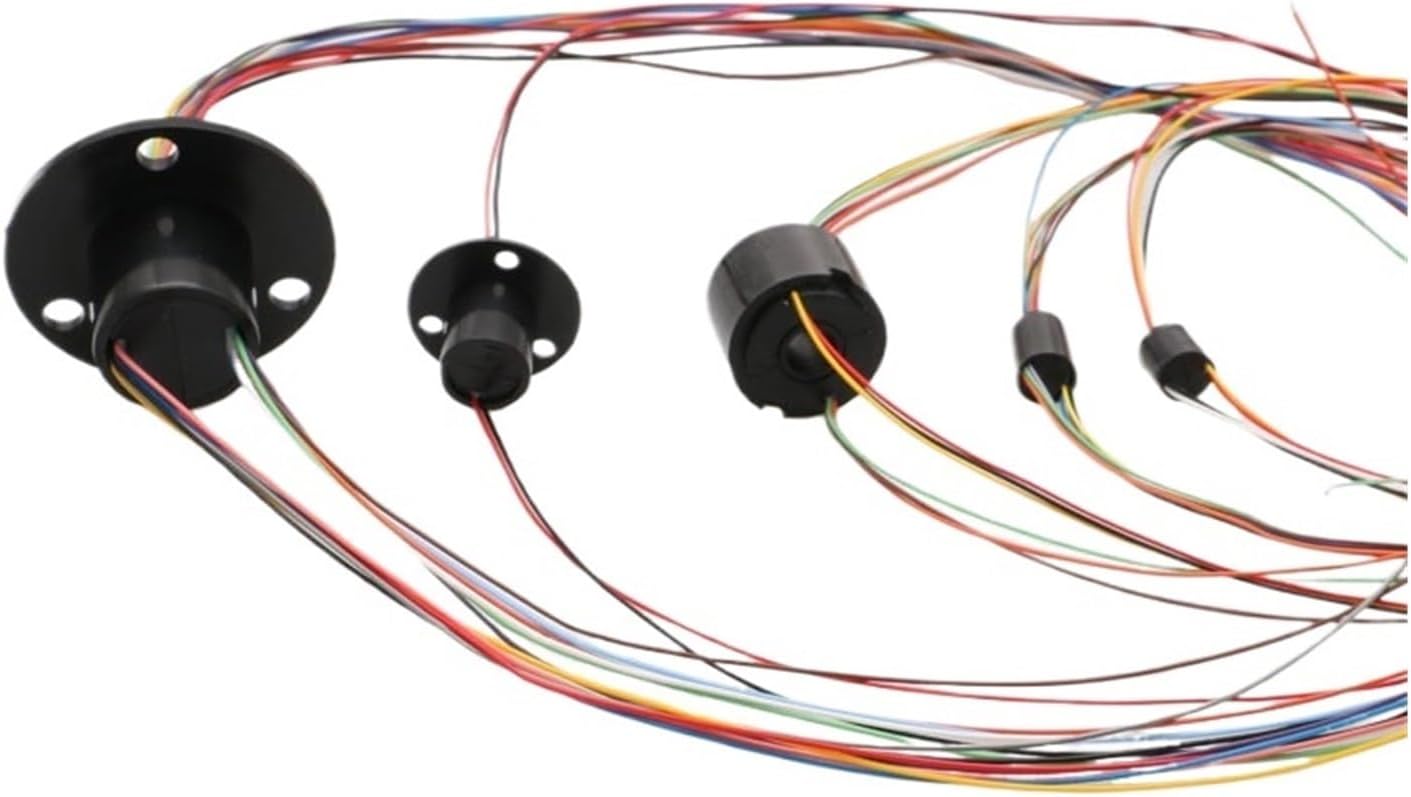

Capsule Slip Rings 1PC 2/4/6/8/12/18/24/36 Channels Wires Capsule Slip Ring 1-2A Slipring 8.5/12.5/15.5/22mm Small Rotary Conductiv Joint Connectors(Dia 22mm 24ch 2A)

Specifications:- Rotation Speed: max. 250rpm- Channels: 2-36 channel- Rated Voltage: 220VAC/DC- Rated Current: 1A,1.5A,2A,10A,15A/channel- Working Temp.: -20~+60- Contact Material: gold/gold- Wire Specification: AWG32, AWG30, AWG28, AWG16- Wire Length: standard 200mm- Pressure Strength: >(=)500V/50Hz- Insulation Resistance: 500M Ohm/500VDC- Dynamic resistance fluctuation value: minimum 10m Ohm- Shell Material: engineering plastics- Working Life: >(=)5 million rpm(related to working environment and speed)Typical applicationSize : 2/4/6/8/12/18/24/36 ChannelsTechnical parameters : value 2Tool Supplies : Assembled classFour-wheel Drive Attributes : Slip RingPeripherals/Devices : Rotary JointUpgrade Parts/Accessories : SlipringParts & Accs : Slip Ring

• Slip Rings are a standard product that uses gold contacts at the rotary interface to ensure stability and longevity, and are used primarily in residential and commercial applications.
• Stator and rotor wires use colored wires to simplify circuit connections.
• The conductive ring is designed with 90 degree angle V wire groove for smooth rotation, low torque and low electrical noise.
• Adopts leading industrial-grade high standard surface treatment technology for a more precise and compact internal structure.
• It is possible to combine signal and power in the same slip ring, which fully satisfies 360 degree rotation.
