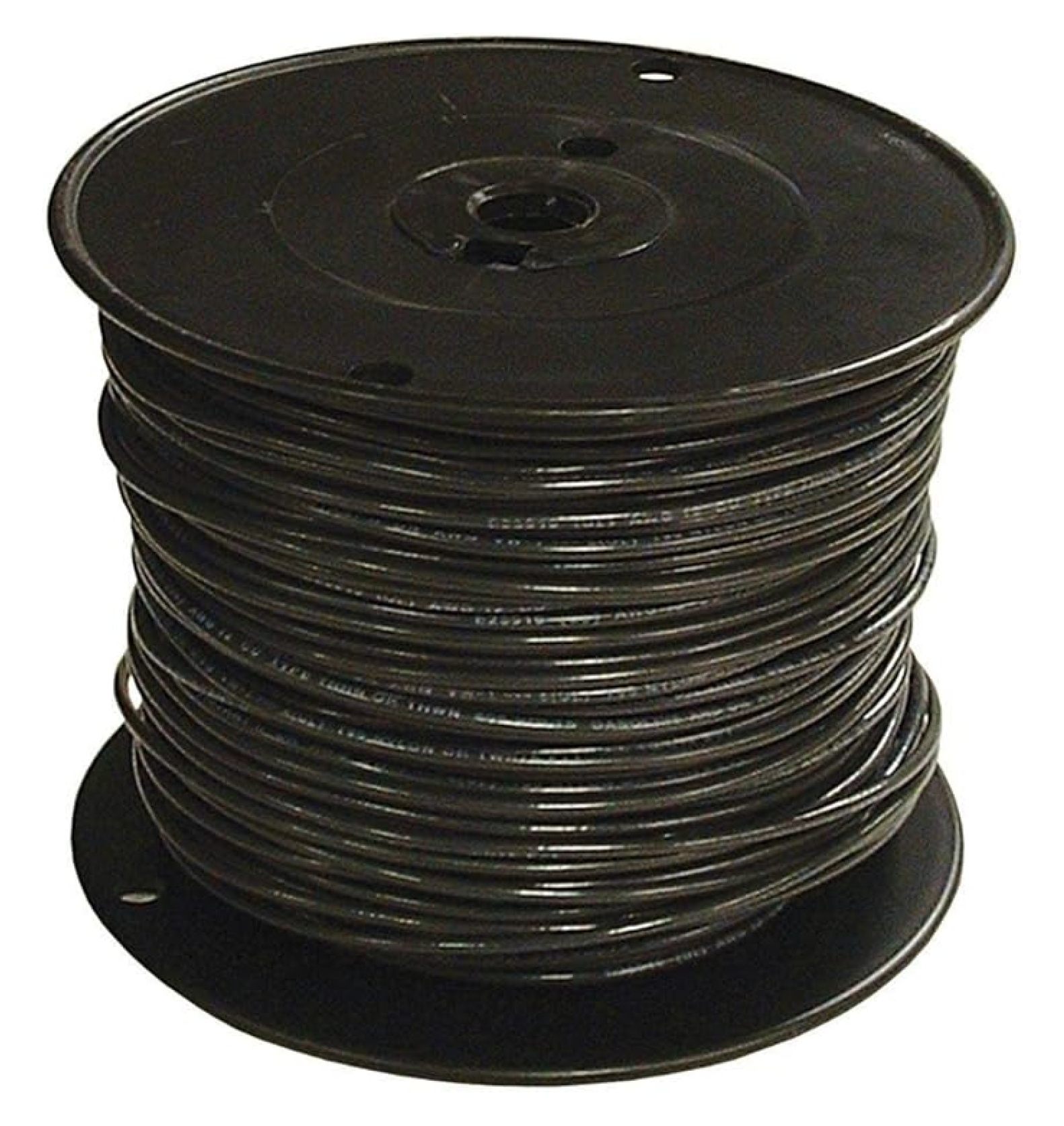

12 Gauge THHN Stranded Copper Wire (500, Black)

Applications:Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the Electrical Code (). Type THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.Features: - Nylon outer for easy pulling and rated gasoline and oil-resistant II. - A tough, polyamide, Nylon outer per UL-1063 and UL-83 - Can be used in wet and dry locations - UL listed, CSA certified and RoHS compliantStandards: - Standards UL-83, UL-1063 and UL-758 - Spec 1316, 1317, 1318, 1319, 1320 and 1321 - Stranding Class B3, B8, B787 - Federal Specification A-A-59544 C22.2 No. 75 - NEMA WC70/ICEA S-95-658 - Institute of Electrical and Electronics EngineersConstruction:Conductors:Stranded, uncoated copper conductors per -B3, -B787 and -B8Insulation:Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compount per UL-1063 and UL-8Specifications:Size: 12 AWGNumber of Strands: 19Cross Section Area (mm2): 3.31PVC Insulation Thickness (Conductor): 0.380 mm / 0.015 inchesNylon Thickness: 0.100 mm / 0.004 inchesOutside Diameter: 3.23 mm / 0.127 inchesAllowable Ampacity: 20 Amps at 60, 75 and 90 degrees C

• 100% Polyvinyl Chloride (PVC)
• #12 AWG Wiring for Outlets, Switches and Other Loads
• Contains 12 Gauge Stranded Copper (CU) Conductors
• Can be Used in Wet or Dry Locations, Insulation is High Heat and Moisture Resistant Polyvinyl Chloride (PVC)
• is Abrasion, Moisture, Gasoline and Oil Resistant Nylon
• UL Listed, CSA Certified and RoHS Compliant
